CNC Punching and Marking Machine
Product Details:
Product Description

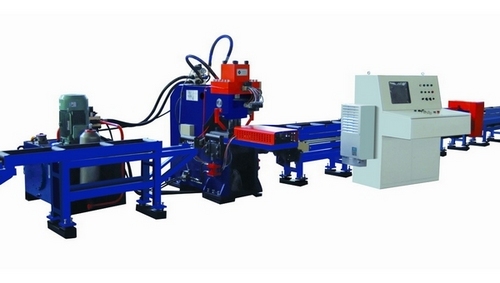

CNC Punching and Marking Machine
The CNC Punching and Marking Machine manufactured, exported and supplied is highly in demand amongst our global clients due to the features like application specific design, rugged construction and reliable performance. Our dexterous professionals fabricate this CNC punching and marking machine using optimal quality raw materials and latest technology in order to meet the industry standards. We offer CNC Punching and Marking Machine in varied technical specifications as per the requirements of clients.
Machine Description:
The machine is the special equipment used for angle steel marking, punching and half-automatic production in the field of power and telecommunication.
Machine Features:
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.
2. Key hydraulic, pneumatic and electric parts all imported.
3. Easy programming and can directly use the program data made by lofting software.
4. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece.
5. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program, or use CAD/CAM direct conversion.
6. Two gradient unloading units are used for preventing angles from being lifted by punching head.
7. With self-diagnosis failures function.
Main Technical Parameter:
| Model | APY16 | ||
| Angles size (mm) | L40x40x3~L140x140x12 | ||
| Max. diameter of punching(mm) | 26 | ||
| Punches(piece) | 3 | ||
| Back mark of punching(mm) | 20~120 ( Stepless ) | ||
| Min. end distance of punching(mm) | 25 | ||
| Nominal force of punching(kN) | 640 | ||
| No. of character group | 1 | ||
| No. of character in each side | 10 | ||
| Character size (mm) | 14x10x19 | ||
| CNC axes | 2 | ||
| Positioning speed of servo motor(m/min) | X axis | 40 | |
| Y axis | 5 | ||
| Programming mode | Input by keyboard, RS232 interface, floppy disk and USB interface | ||
| Precision | Accordance with GB2694 | ||
| Overall dimensions LxWxH (m) | 23x1.2x1.7 | ||
| Weight of machine(kg) | Approx. 3000 | ||
